SELECTED WORK / PCB LAYOUT

Phytium D2000 Industrial Motherboard

PCB layout for a Phytium D2000-based industrial motherboard. The 8-layer, 170 × 170 mm board uses through-hole vias and integrates DDR4 SO-DIMM memory, PCIe Gen 3 and multiple display, storage and networking interfaces.

Motherboard component placement — top side
Motherboard component placement — top sideDisplayed with client permission.

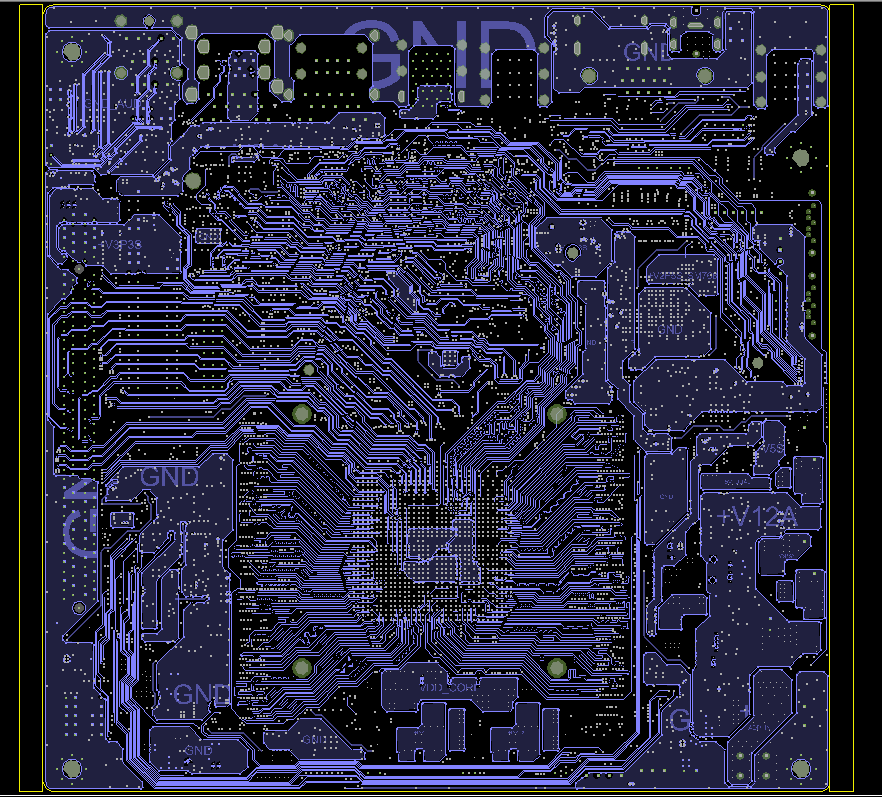

Selected motherboard routing layer — blue
Selected motherboard routing layer — blue

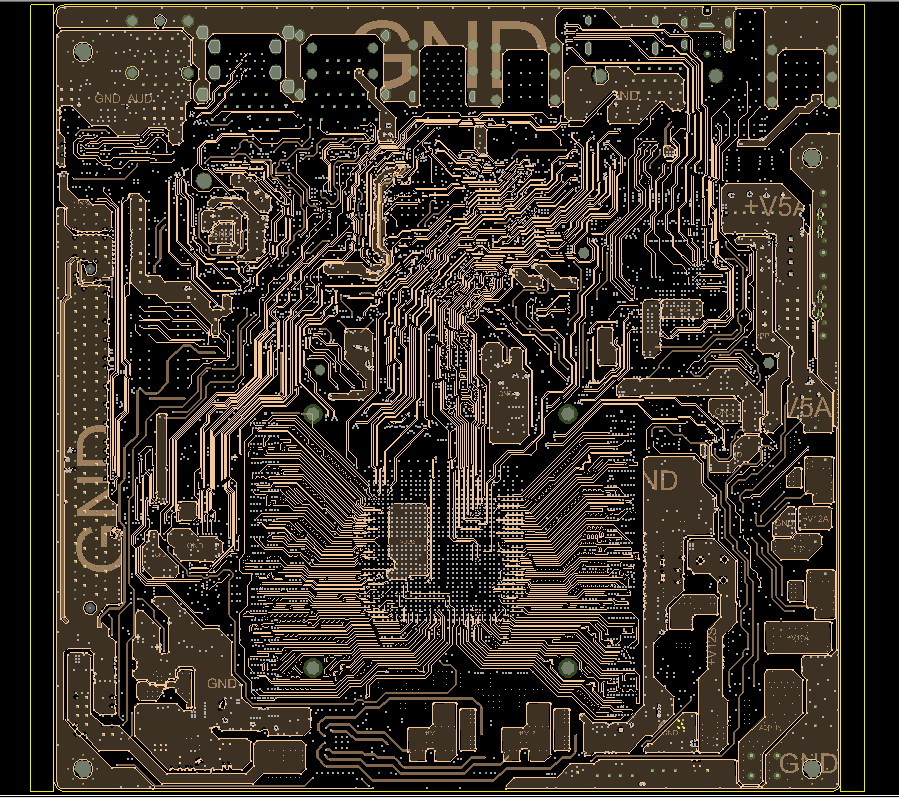

Selected motherboard routing layer — amber
Selected motherboard routing layer — amber

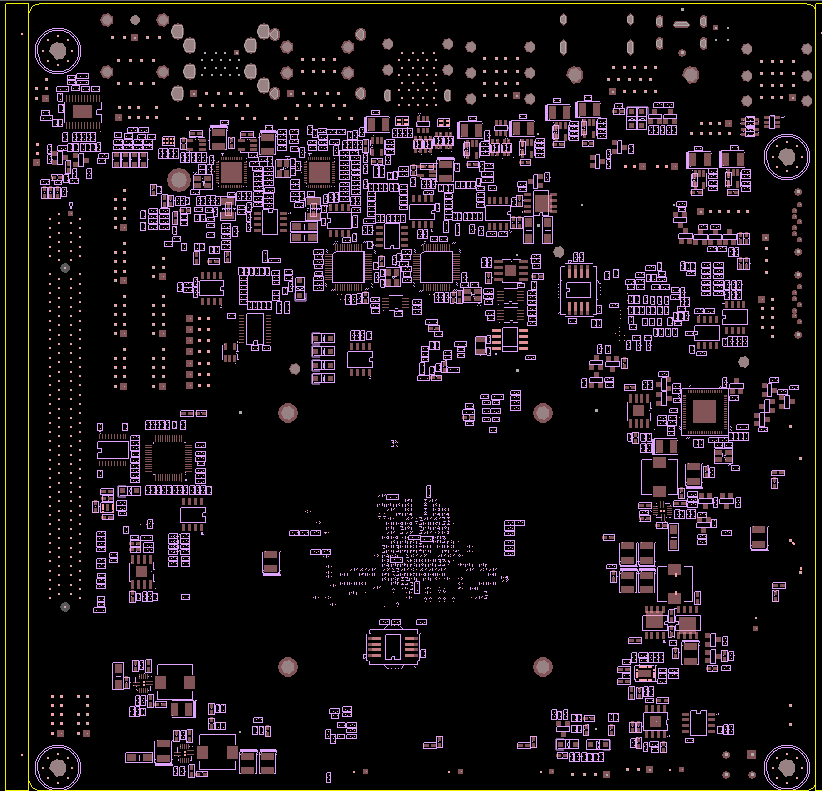

Motherboard component placement — bottom side
Motherboard component placement — bottom side

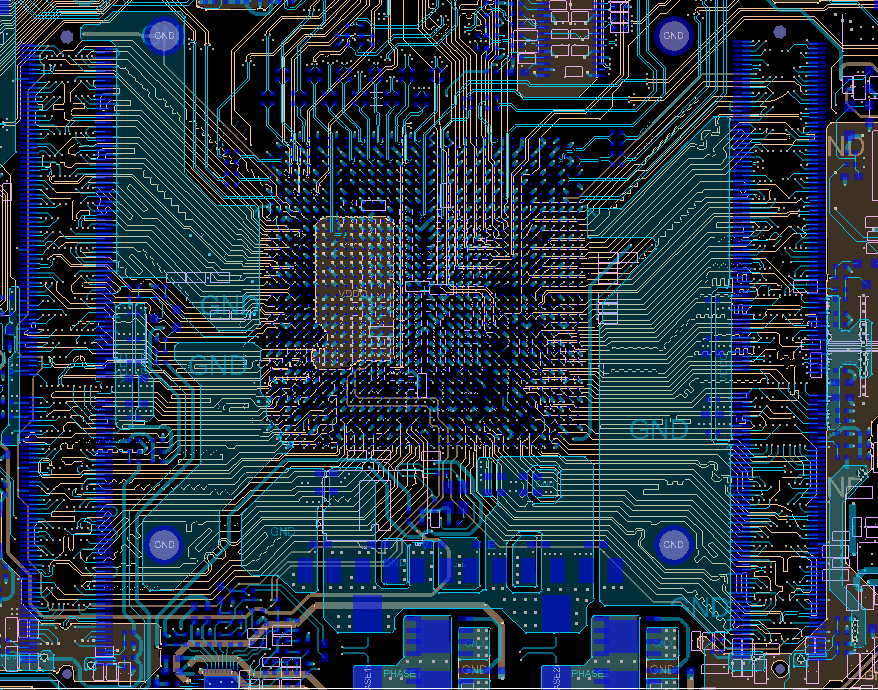

Processor and memory routing overview
Processor and memory routing overview

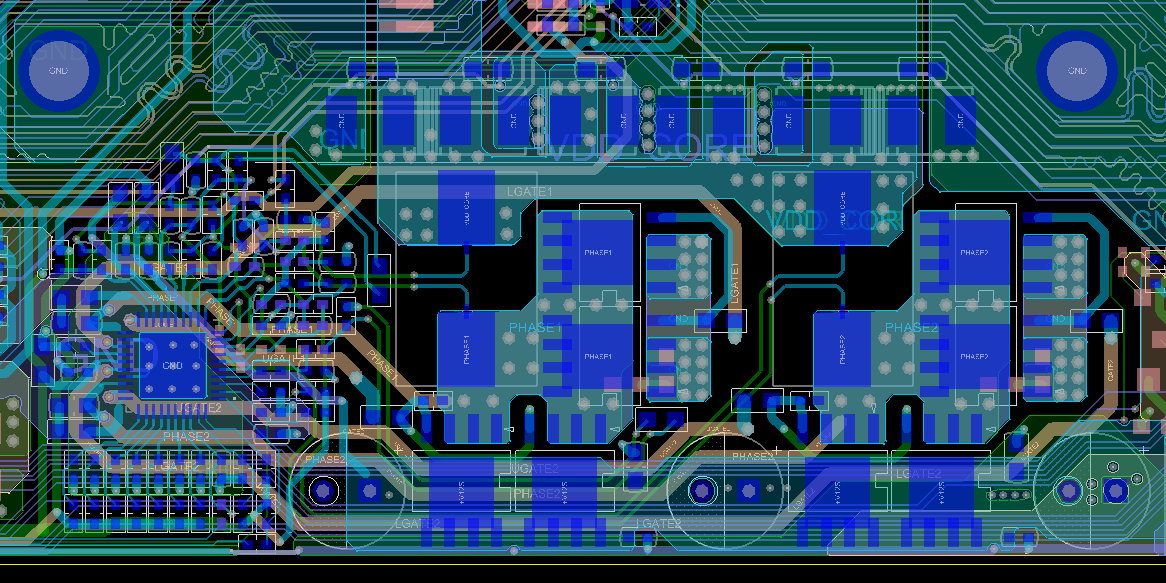

Processor power-area layout detail
Processor power-area layout detail

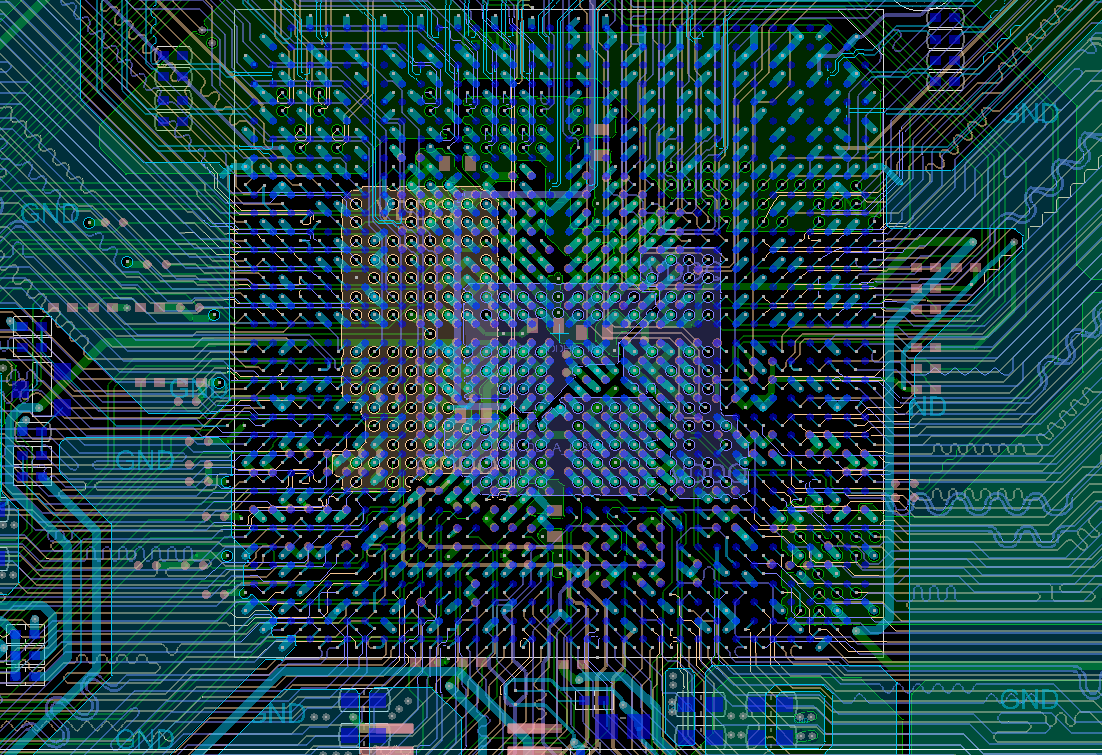

Processor fanout and routing detail
Processor fanout and routing detail
Platform
Phytium D2000
Layer count
8 layers
Board dimensions
170 × 170 mm
Design tool
Cadence Allegro 17.2
Via technology
Through-hole vias
Project interfaces
DDR4 SO-DIMM · PCIe Gen 3 · USB 3.0 · eDP · DisplayPort · HDMI · SATA · LAN

PCB layout scope

PCB placement and routing for an industrial motherboard, covering processor fanout, DDR4 memory connections, peripheral interfaces and processor power-area layout. The specifications above refer to the motherboard.

Project imagery

Seven original CAD views show component placement on both sides, selected routing layers, processor and memory routing, power-area layout and processor fanout detail.
