SELECTED WORK / PCB LAYOUT

Intel Arrow Lake-S Industrial Motherboard

PCB layout for an Intel Arrow Lake-S-based industrial motherboard. The 8-layer, 305 × 250 mm design uses through-hole vias and integrates DDR5 memory, PCIe Gen 4, USB4 40 Gbps and multiple display, storage and networking interfaces.

Industrial motherboard component placement
Industrial motherboard component placementDisplayed with client permission.

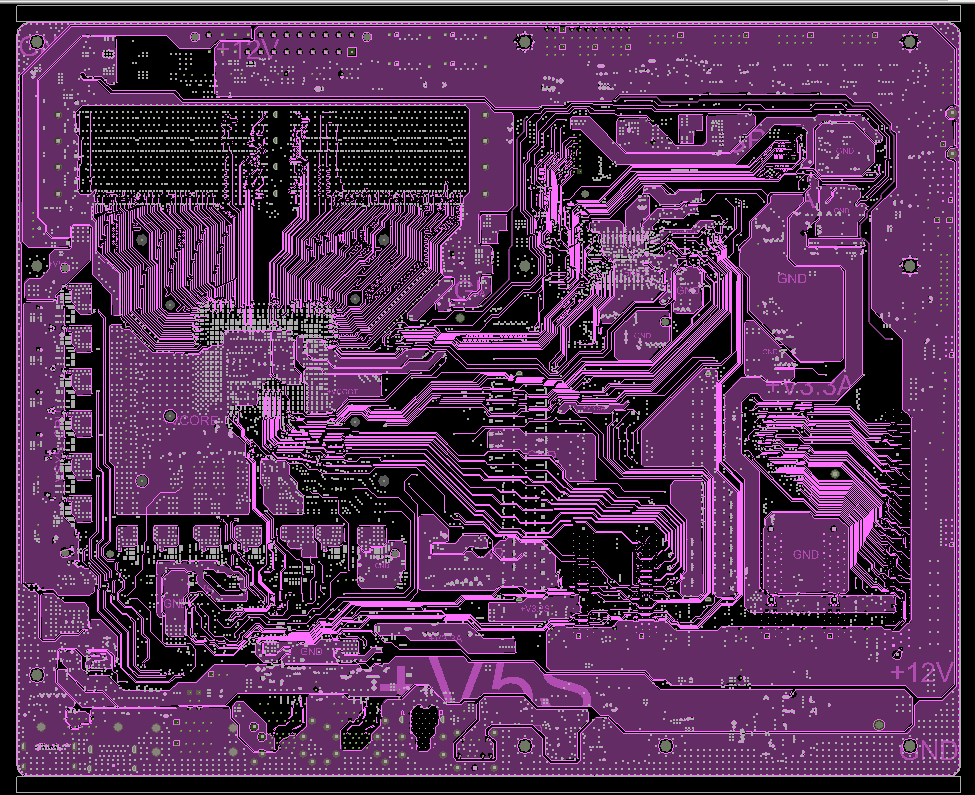

Selected motherboard routing layer — purple
Selected motherboard routing layer — purple

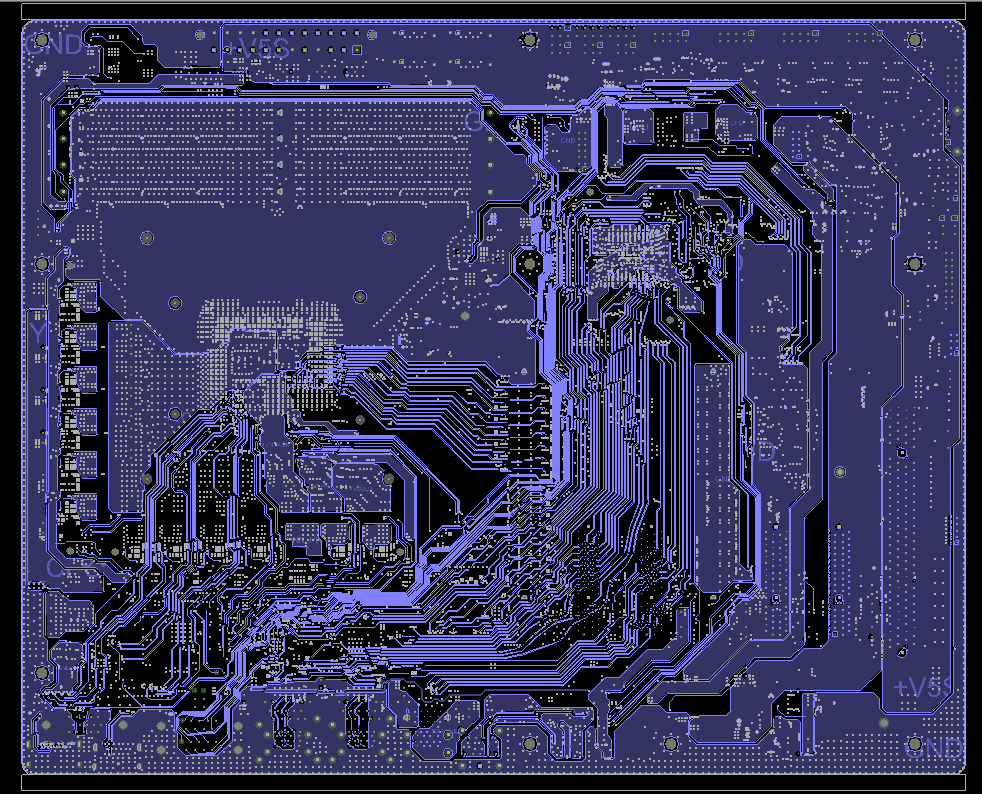

Selected motherboard routing layer — blue
Selected motherboard routing layer — blue

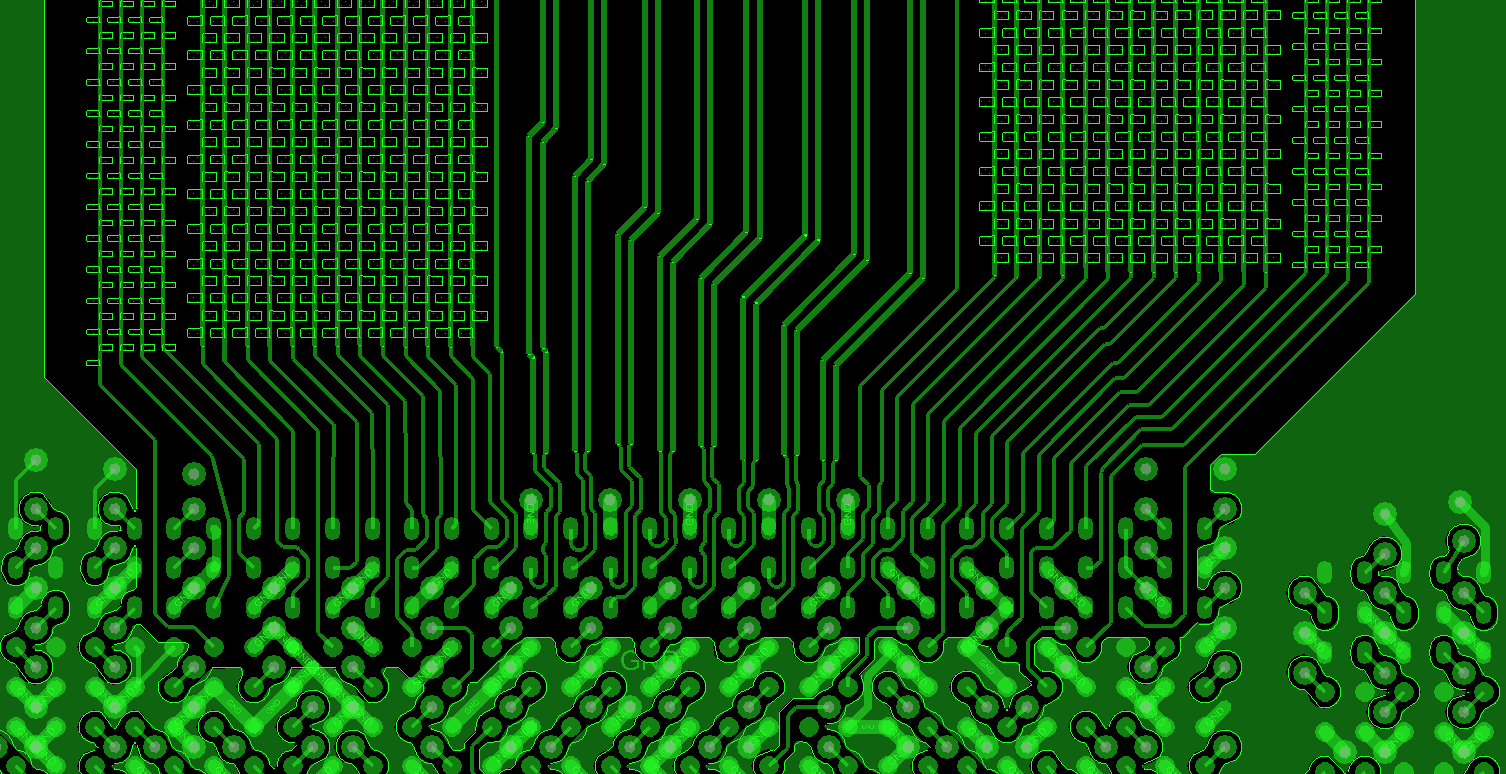

Processor fanout and routing detail
Processor fanout and routing detail

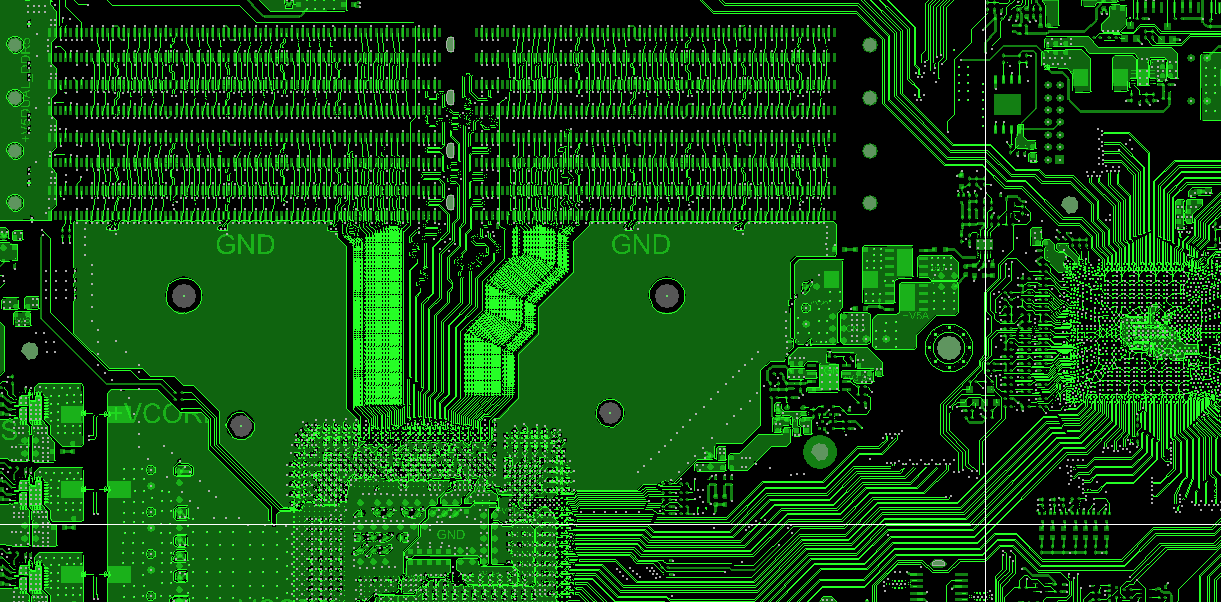

Processor and memory routing overview
Processor and memory routing overview

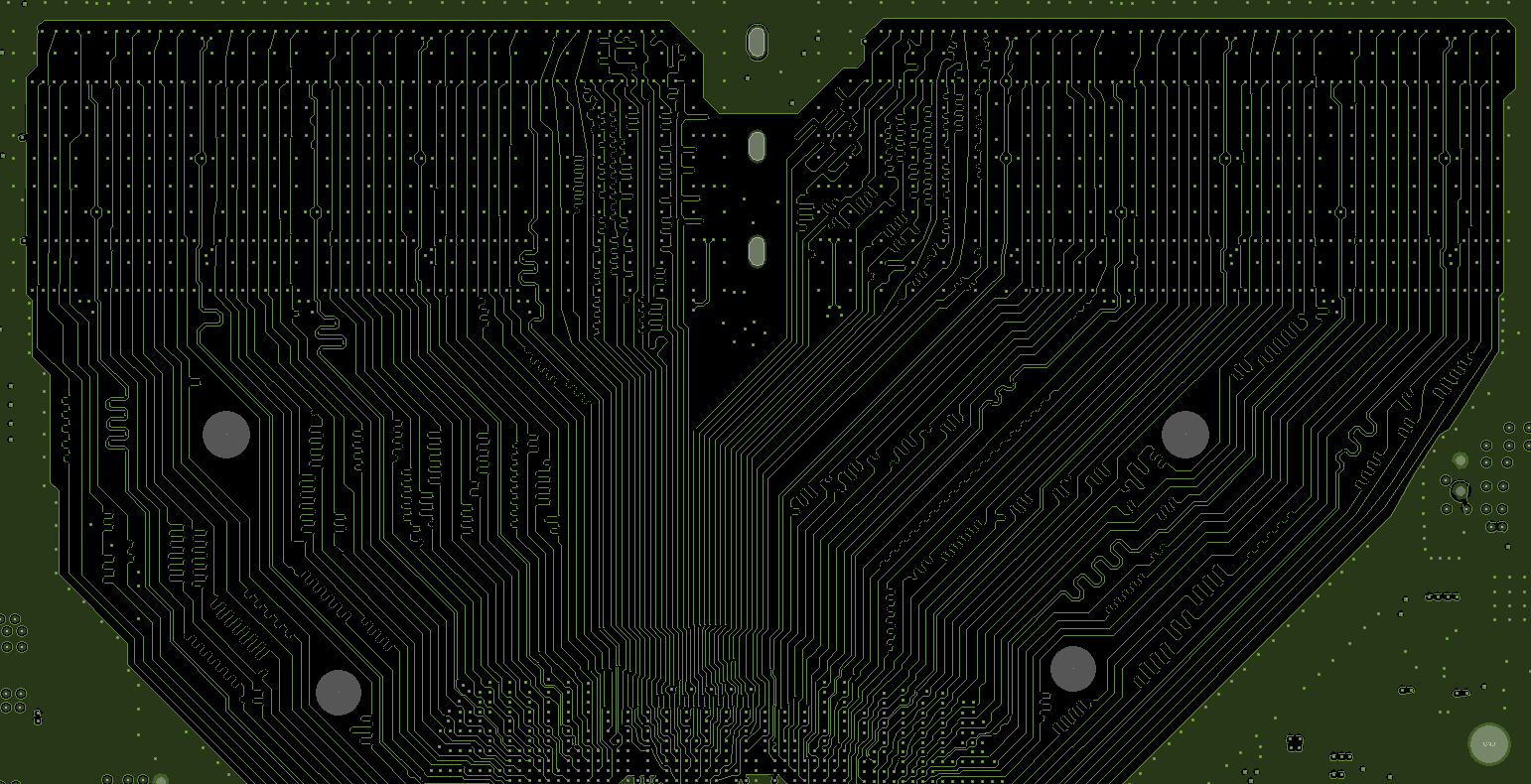

DDR5 memory routing detail
DDR5 memory routing detail

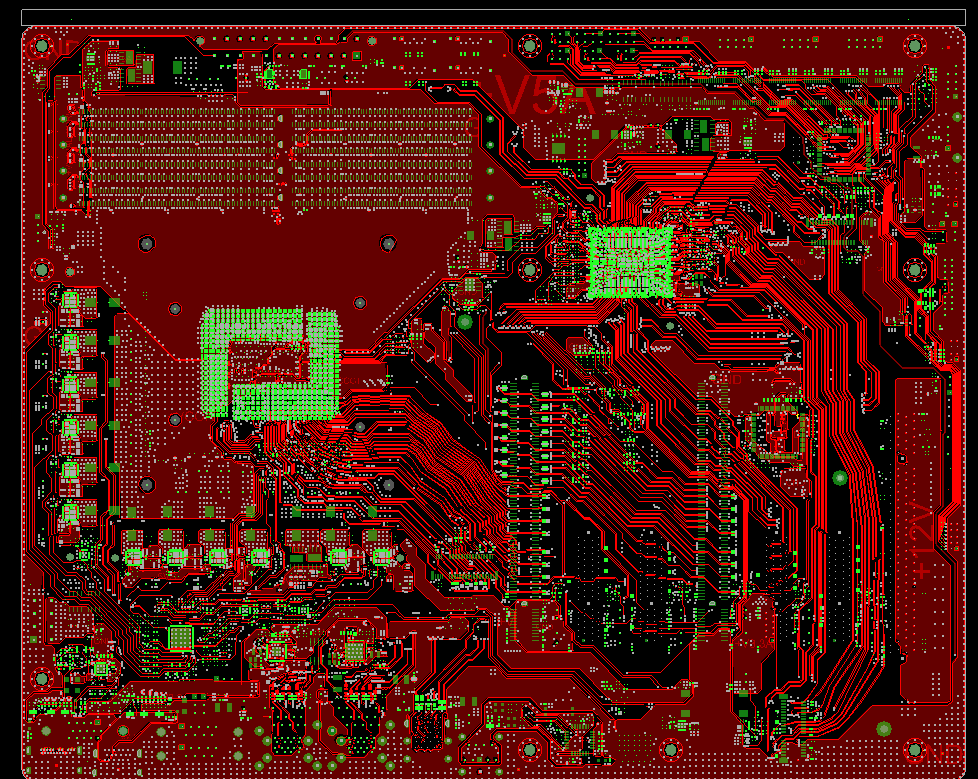

Selected motherboard routing layer — red
Selected motherboard routing layer — red

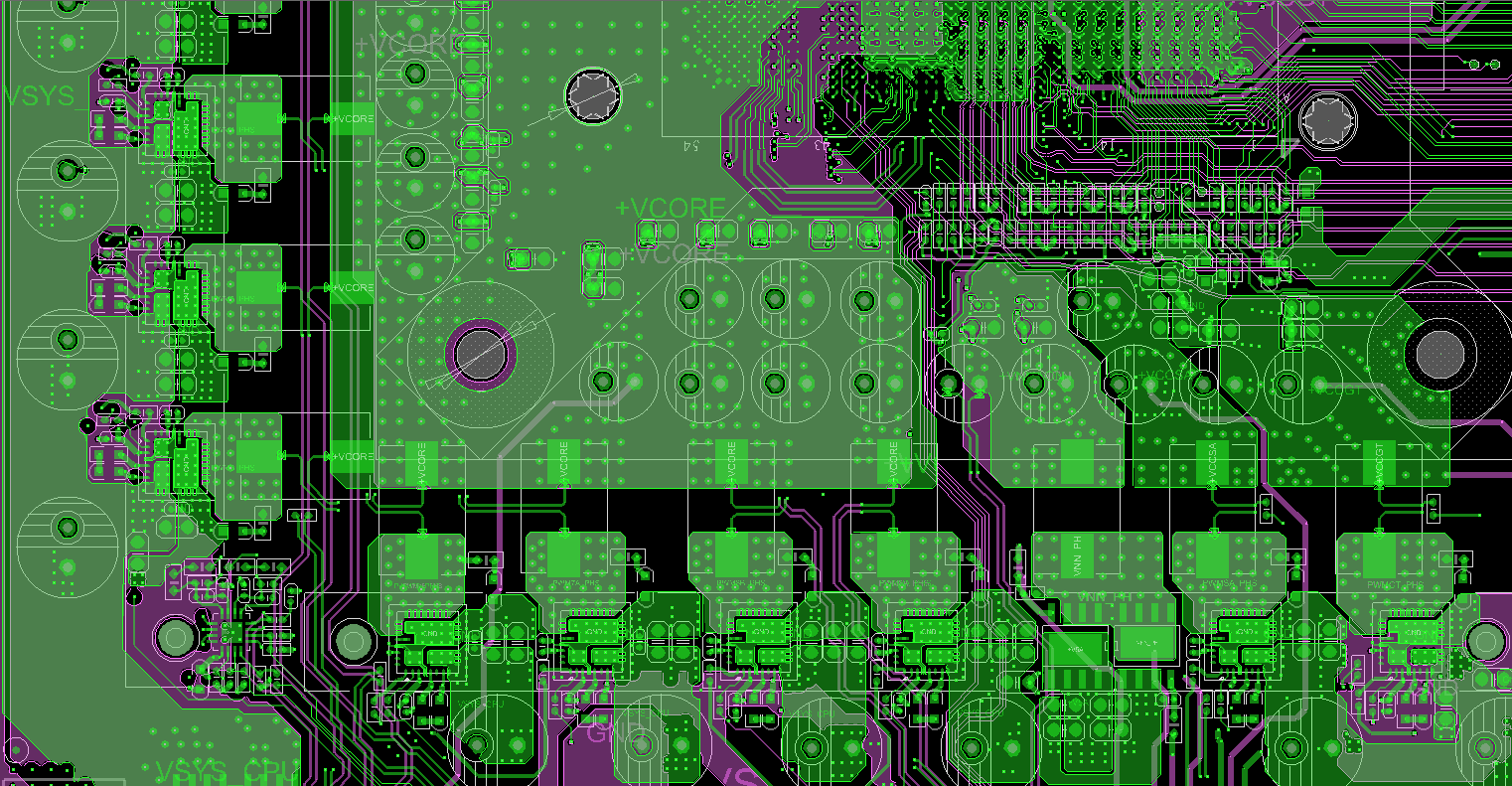

Processor power-area layout detail
Processor power-area layout detail
Platform
Intel Arrow Lake-S
Layer count
8 layers
Board dimensions
305 × 250 mm
Design tool
Cadence Allegro 20
Via technology
Through-hole vias
Project interfaces
DDR5 SO-DIMM · PCIe Gen 4 · USB 3.0 · USB4 40 Gbps · eDP · DisplayPort · HDMI · SATA · LAN

PCB layout scope

PCB placement and routing for an industrial motherboard, covering processor fanout, DDR5 memory routing, expansion and peripheral connections, and processor power-area layout. The specifications above refer to the motherboard.

Project imagery

Eight original CAD views show component placement, selected routing layers, processor fanout, memory routing and power-area layout.
