SELECTED WORK / PCB LAYOUT

Xilinx SOM + Carrier Board

PCB layout for a Xilinx-based system-on-module and carrier-board project. The SOM combines a compact 102 × 72 mm outline with a 12-layer, through-hole PCB construction.

Original routing detail
Original routing detailDisplayed with client permission.

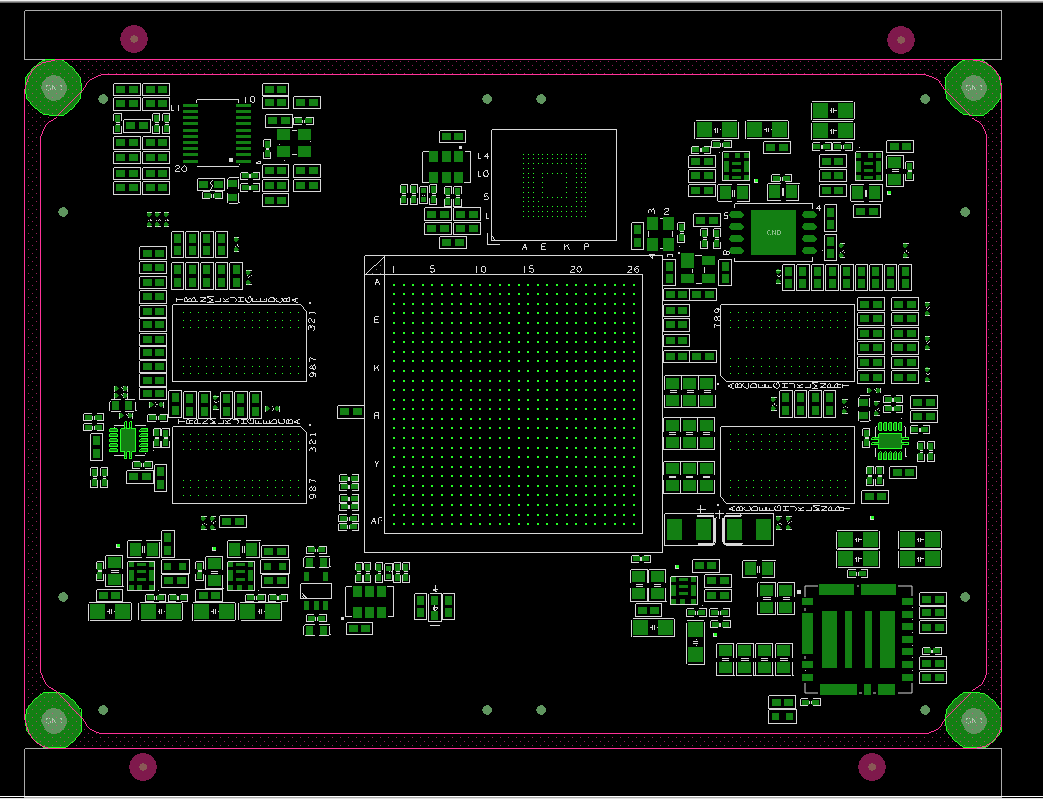

SOM component placement
SOM component placement

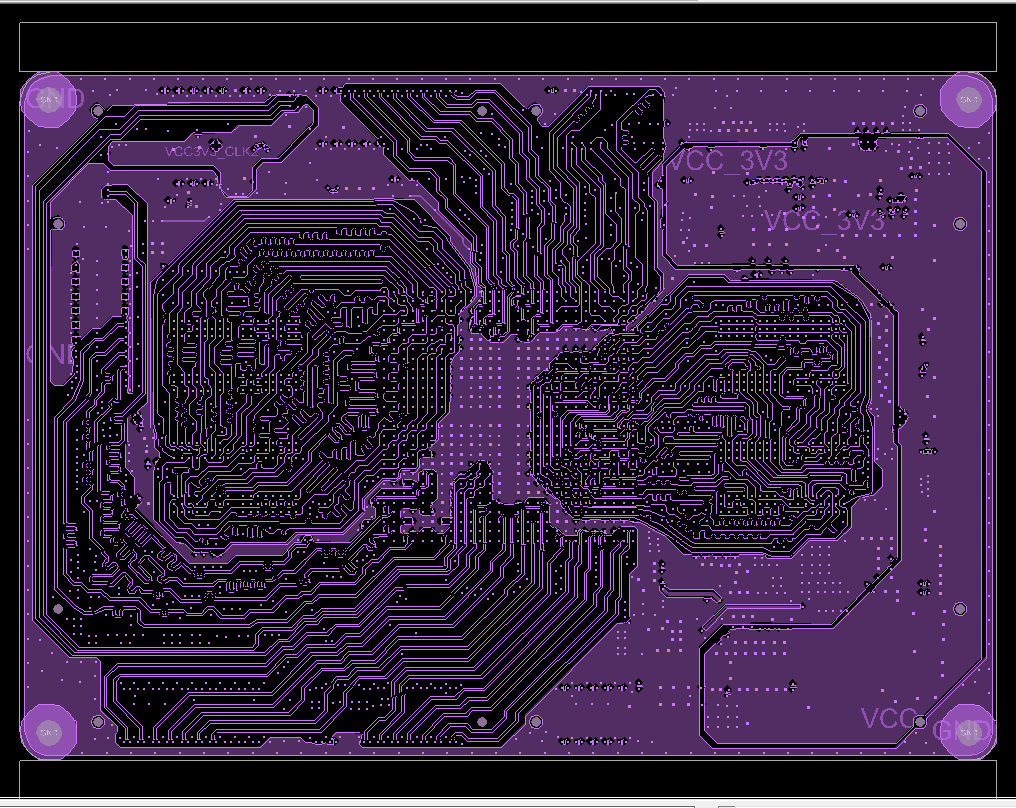

Selected routing layer — purple
Selected routing layer — purple

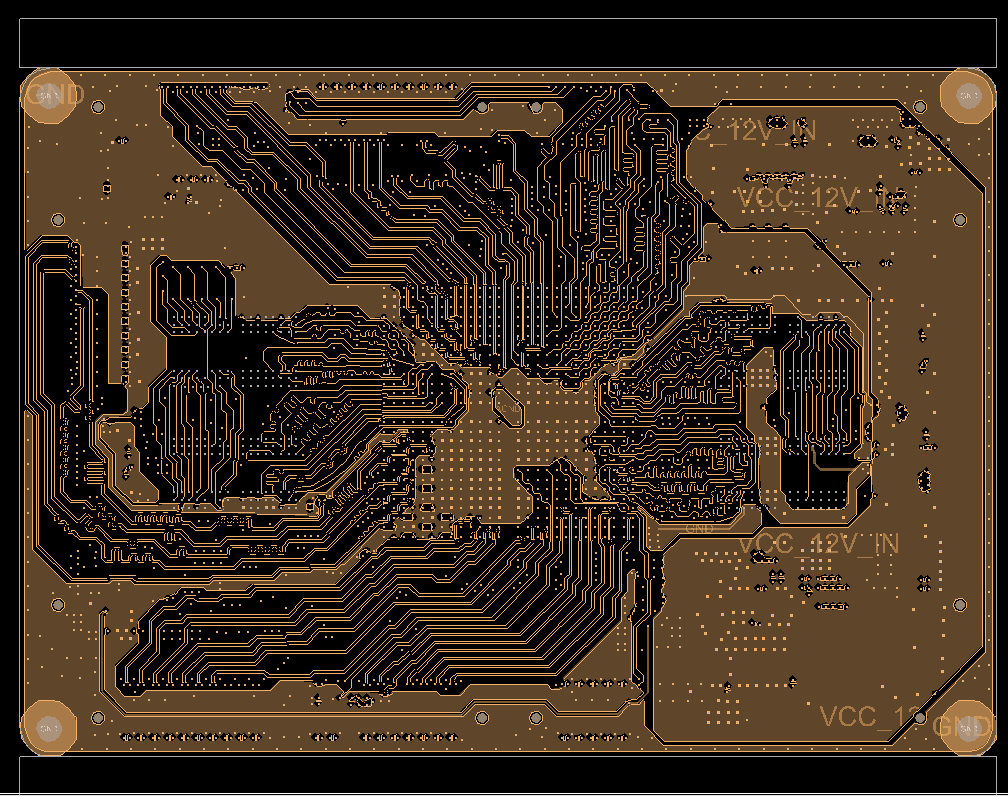

Selected routing layer — amber
Selected routing layer — amber

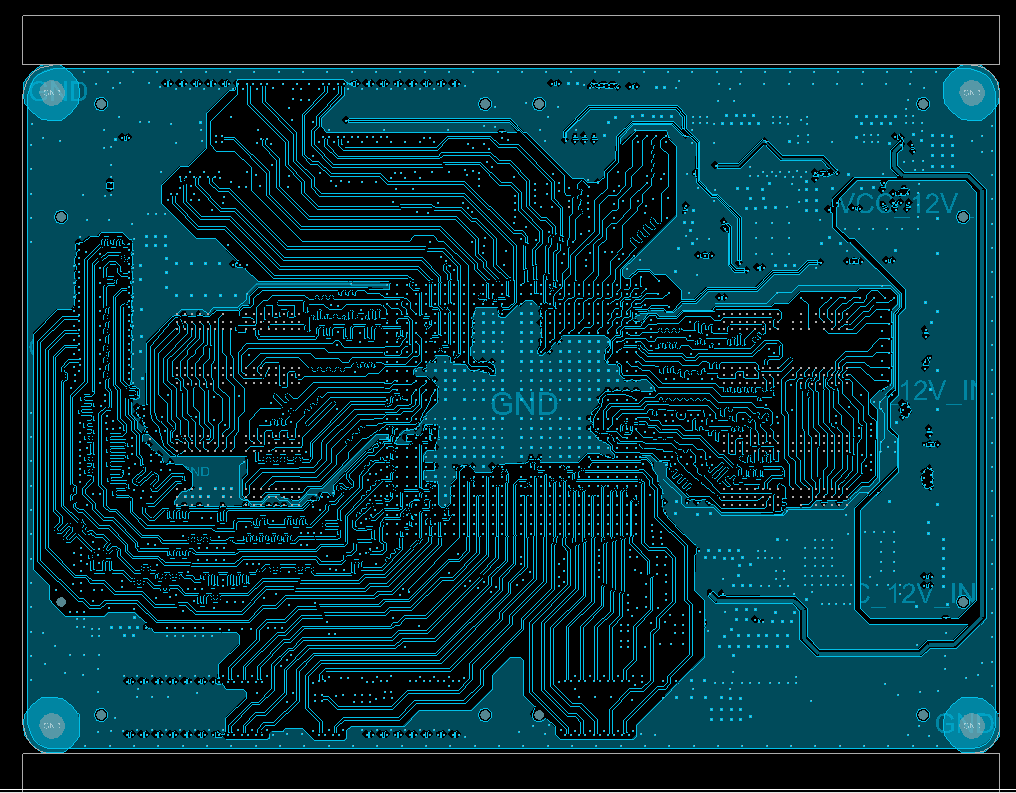

Selected routing layer — cyan
Selected routing layer — cyan

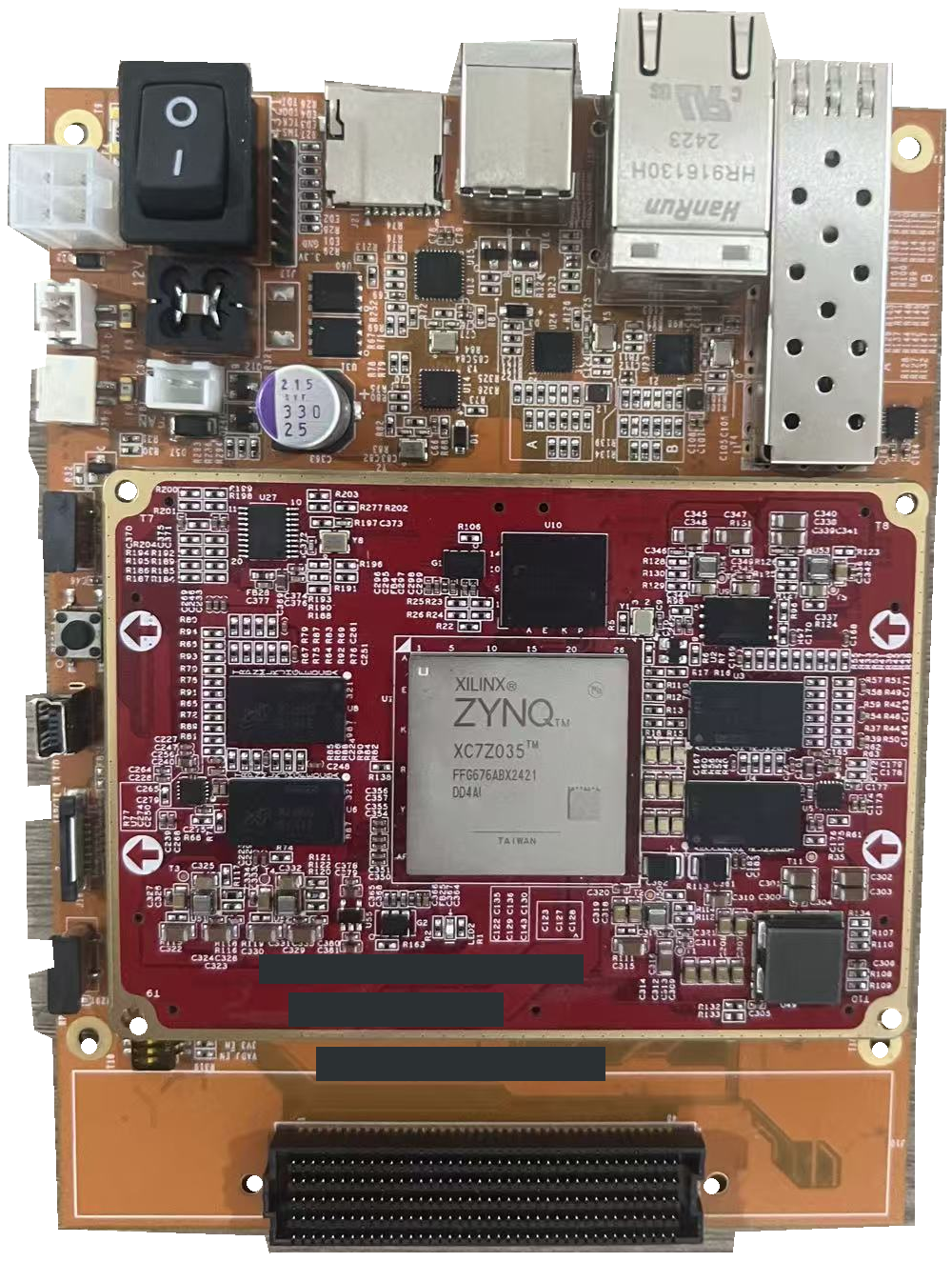

Assembled SOM and carrier board; project identifiers redacted
Assembled SOM and carrier board; project identifiers redacted
Platform
Xilinx-based FPGA
SOM layer count
12 layers
SOM dimensions
102 × 72 mm
Design tool
Cadence Allegro 16.6
SOM via technology
Through-hole vias
Project interfaces
LPDDR3 · PCIe Gen 2 · USB 3.2

PCB layout scope

SOM core-board and carrier-board PCB layout. Layer count and dimensions above refer specifically to the SOM; carrier-board specifications are not listed.

Project imagery

Original layout views show component placement and multilayer routing detail. The assembly photograph has its background removed and project identifiers redacted; SoC markings are retained.
