Intel Wildcat Lake Industrial Computer Motherboard

PCB layout for an Intel Wildcat Lake-based industrial computer motherboard. The 10-layer, 122 × 115 mm design integrates LPDDR5 memory, USB4 40 Gbps, display, storage and networking interfaces.

Industrial motherboard component placement; project identifiers redacted
Industrial motherboard component placement; project identifiers redactedDisplayed with client permission.

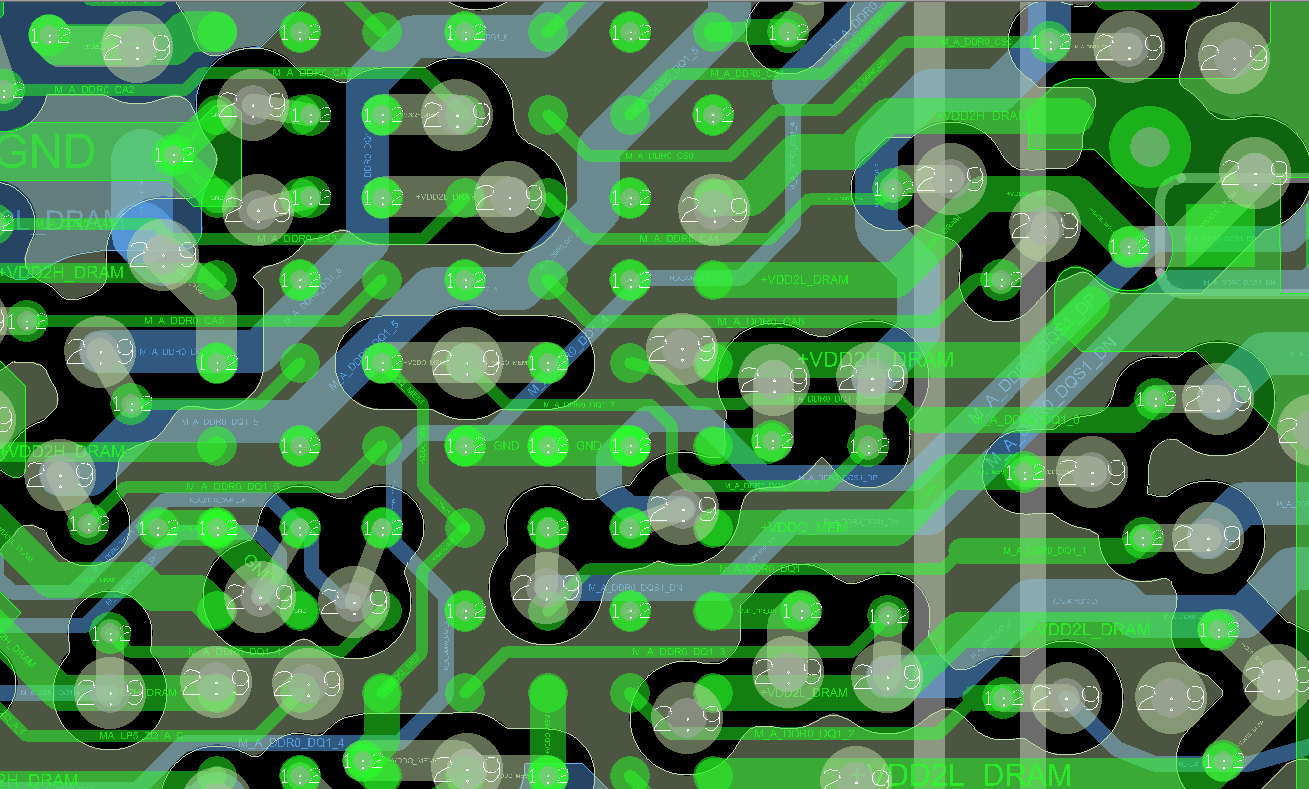

Via and routing detail
Via and routing detail

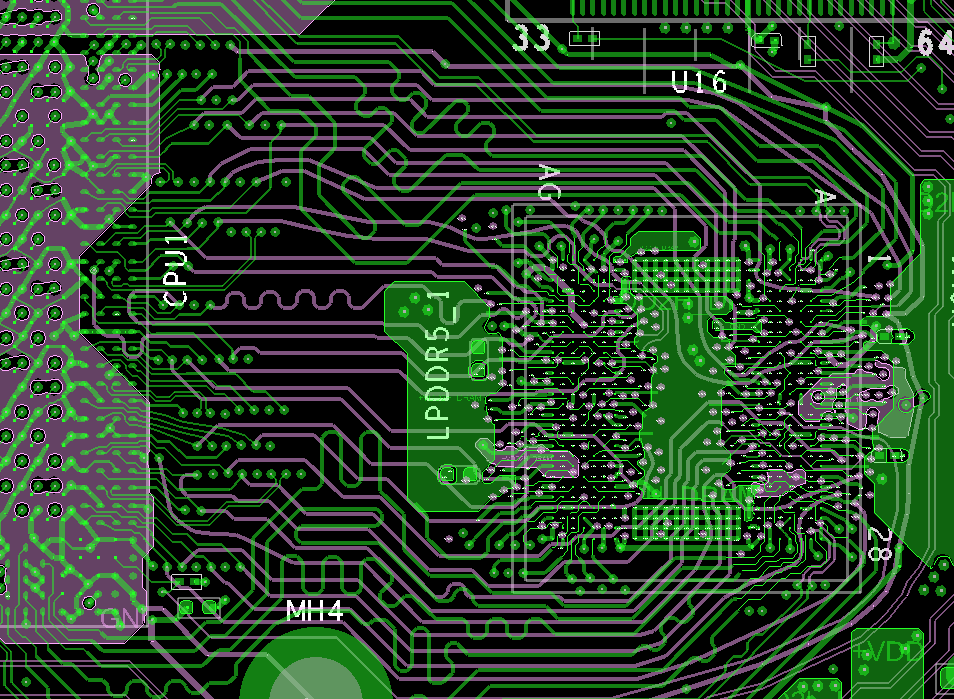

LPDDR5 memory routing detail
LPDDR5 memory routing detail

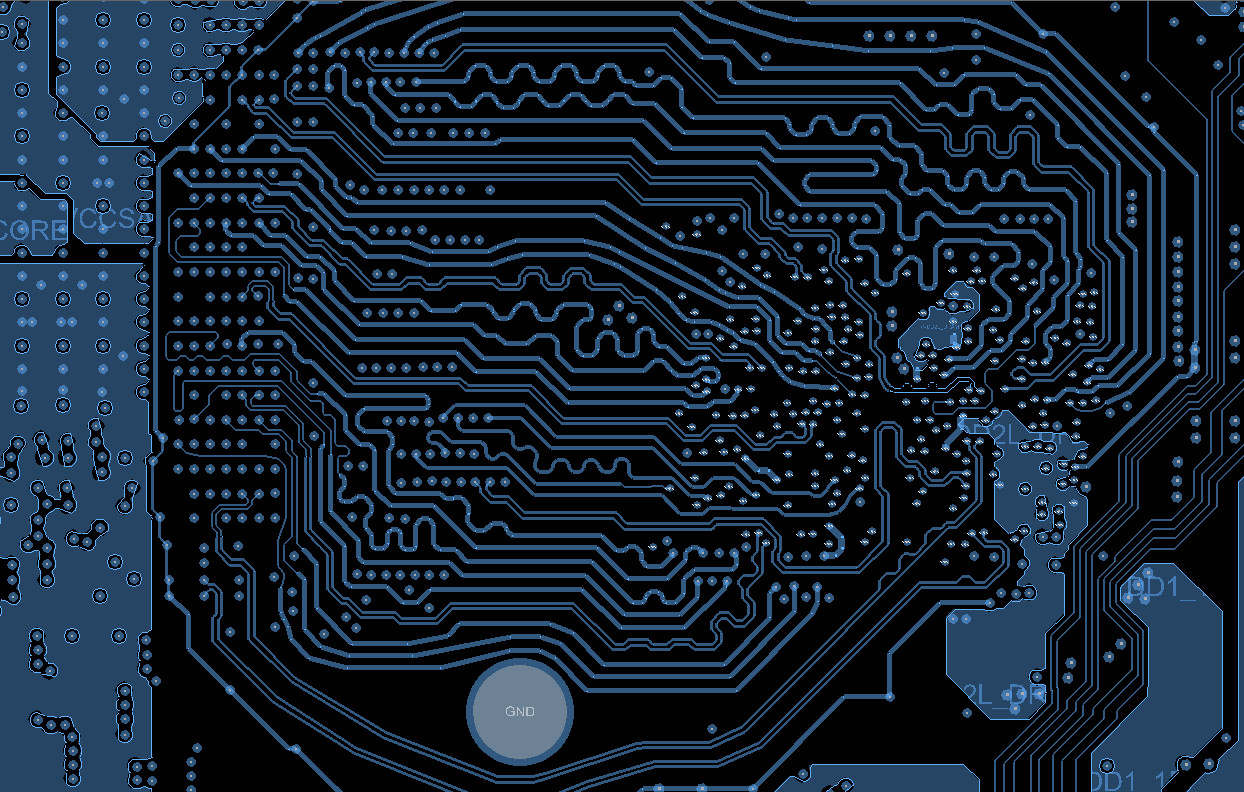

Selected motherboard routing detail
Selected motherboard routing detail

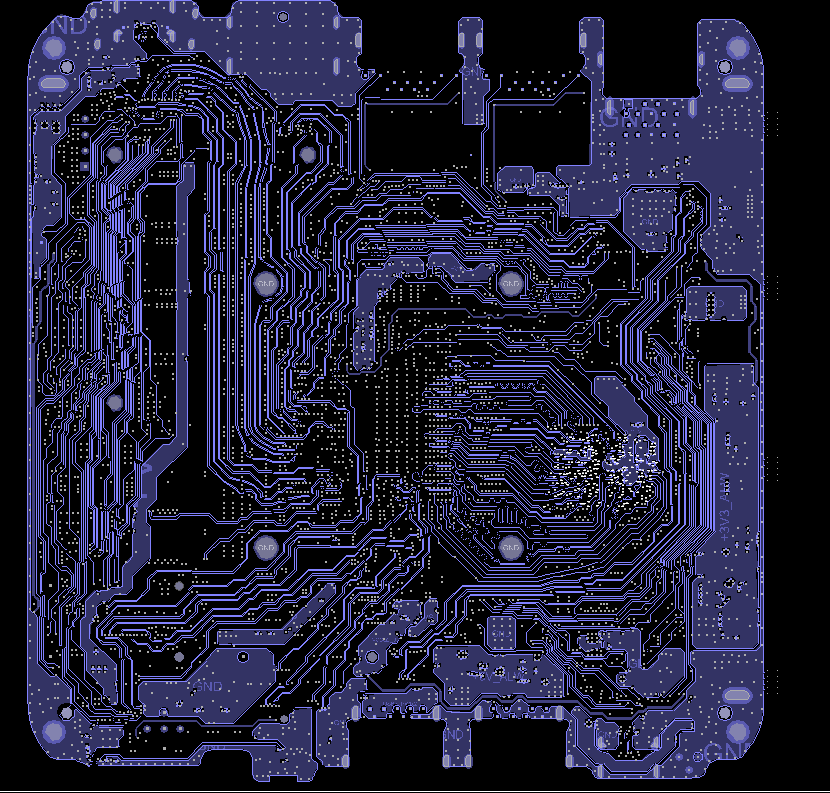

Motherboard routing-layer overview
Motherboard routing-layer overview

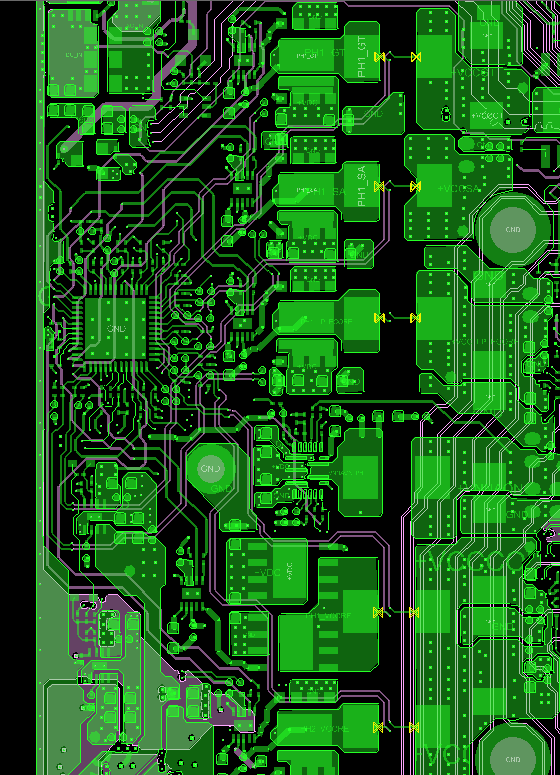

Processor power-area layout detail
Processor power-area layout detail
Platform
Intel Wildcat Lake
Layer count
10 layers
Board dimensions
122 × 115 mm
Design tool
Cadence Allegro 17.4
Via technology
Single-stage HDI with blind, buried and through-hole vias
Project interfaces
LPDDR5 · PCIe Gen 3 · USB 3.0 · USB4 40 Gbps · eDP · DisplayPort · HDMI · SATA · LAN

PCB layout scope

PCB placement and routing for an industrial computer motherboard, covering processor and LPDDR5 memory routing, peripheral interfaces and power-area layout. The specifications above refer to the motherboard.

Project imagery

Six original CAD views show component placement, via detail, memory routing, a selected routing layer and power-area layout. Project identifiers are redacted from the placement view.
