AMD FP7 Industrial Computer Motherboard

PCB layout for an AMD FP7-based industrial computer motherboard. The 12-layer, 122 × 115 mm design integrates LPDDR5 memory, USB4 40 Gbps, display, storage and networking interfaces.

Industrial motherboard component placement
Industrial motherboard component placementDisplayed with client permission.

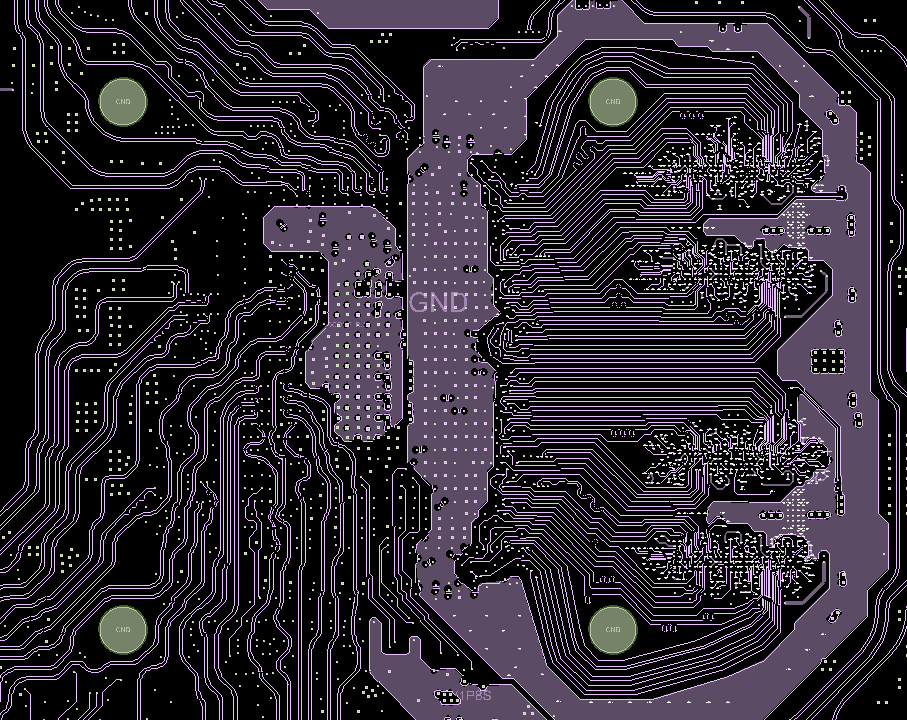

Processor and memory routing overview
Processor and memory routing overview

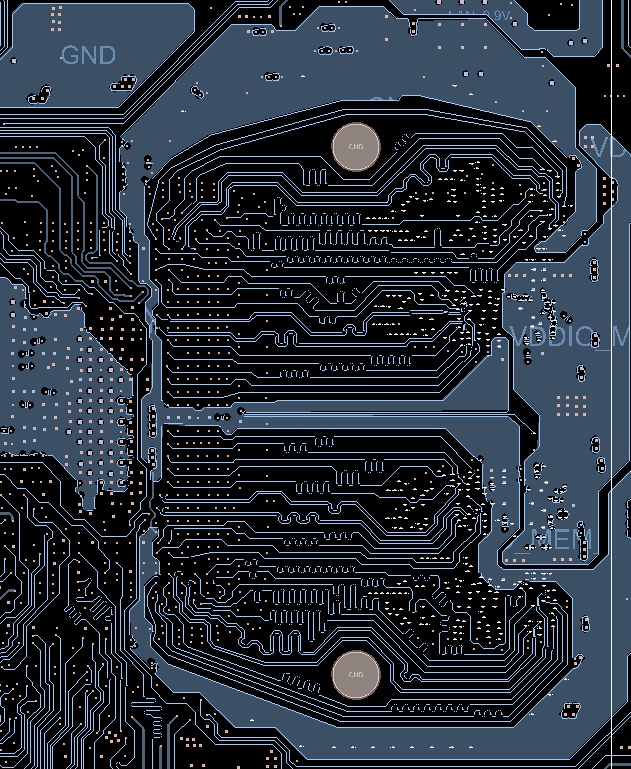

Selected motherboard routing layer — blue
Selected motherboard routing layer — blue

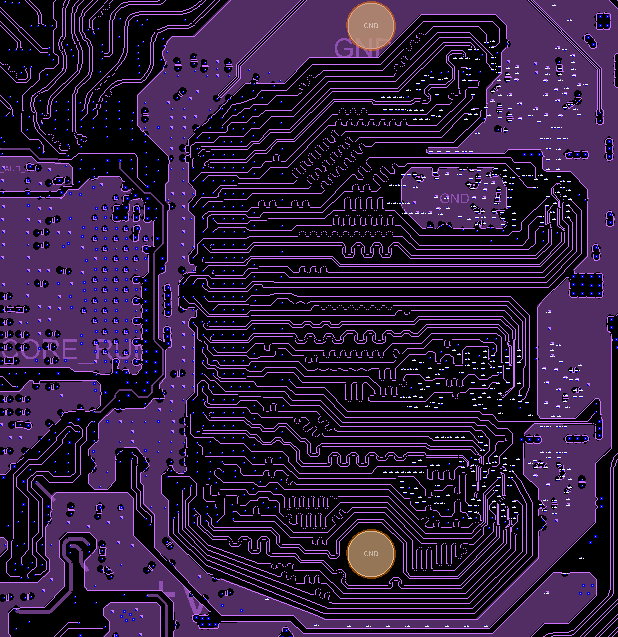

Selected motherboard routing layer — purple
Selected motherboard routing layer — purple

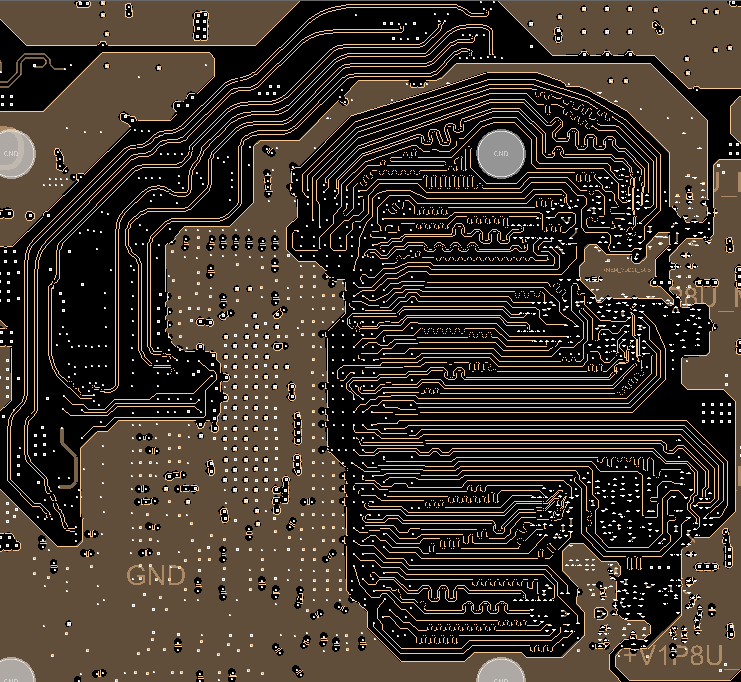

Selected motherboard routing layer — amber
Selected motherboard routing layer — amber

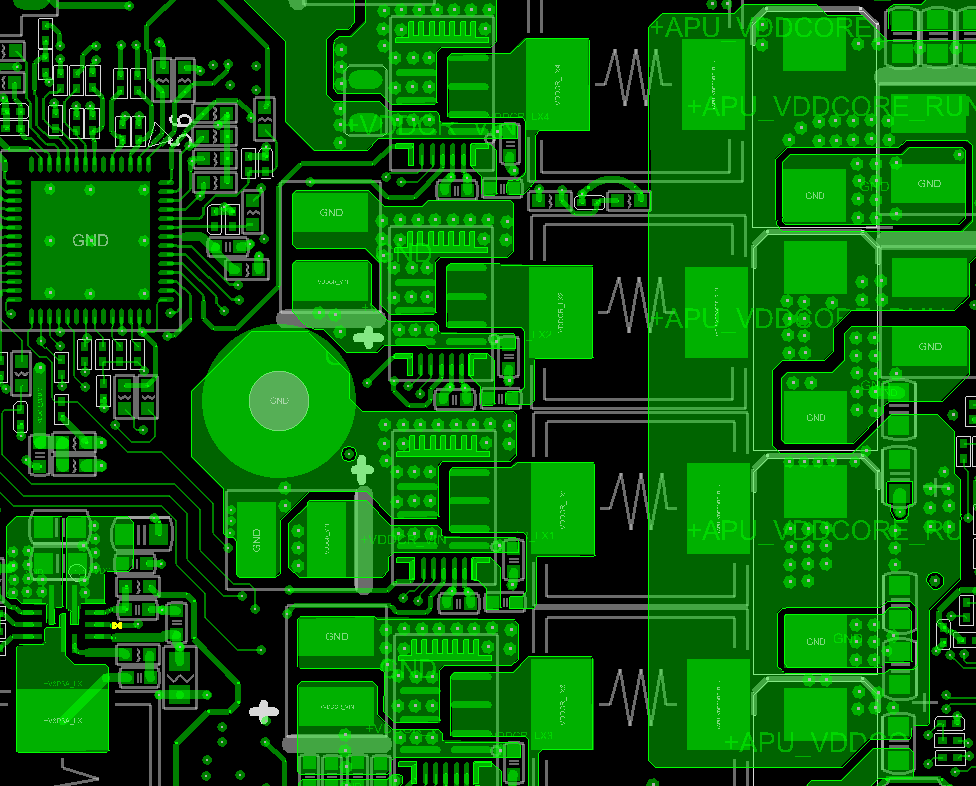

Processor power-area layout detail
Processor power-area layout detail

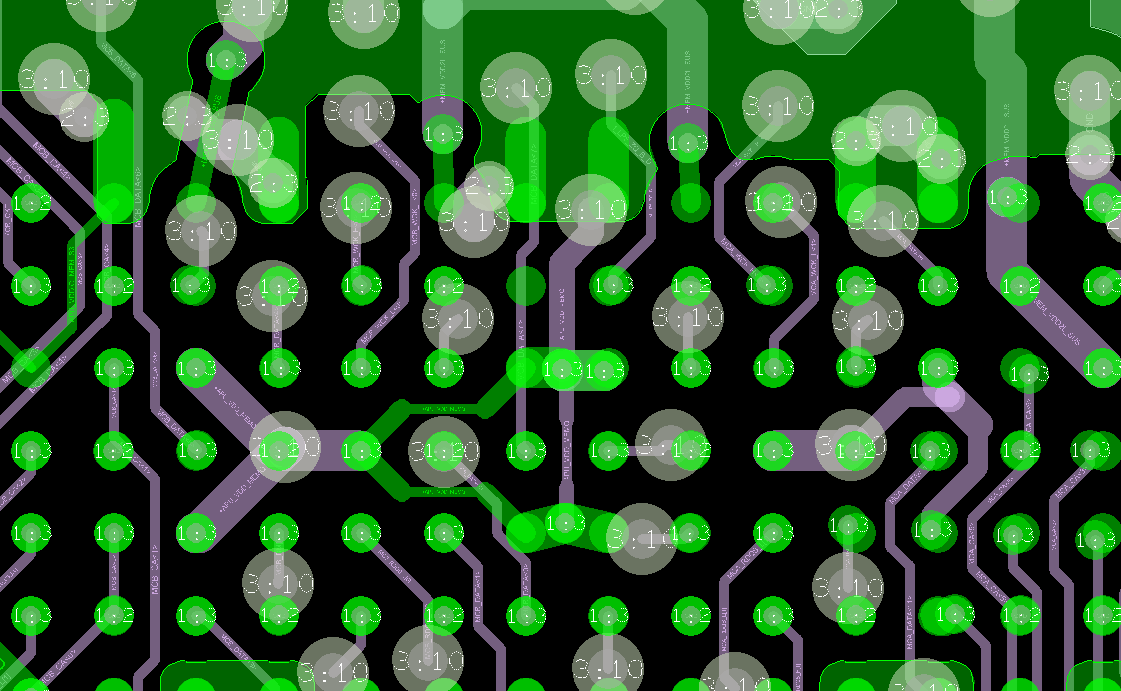

Via and routing detail
Via and routing detail
Platform
AMD FP7
Layer count
12 layers
Board dimensions
122 × 115 mm
Design tool
Cadence Allegro 17.4
Via technology
Two-stage HDI with blind, buried and through-hole vias
Project interfaces
LPDDR5 · PCIe Gen 2 · USB 3.0 · USB4 40 Gbps · eDP · DisplayPort · HDMI · SATA · LAN

PCB layout scope

PCB placement and routing for an industrial computer motherboard, covering processor and memory routing, peripheral interfaces and power-area layout. The layer count and dimensions above refer to the motherboard.

Project imagery

Seven original CAD views show component placement, selected routing layers, power-area layout and via routing detail.
