SELECTED WORK / PCB LAYOUT

AMD FP6 Laptop Motherboard

PCB layout for an AMD FP6-based laptop motherboard. The 8-layer, 164 × 110 mm board uses through-hole vias and brings together processor routing, memory, display, storage and peripheral interfaces.

Laptop motherboard component placement
Laptop motherboard component placementDisplayed with client permission.

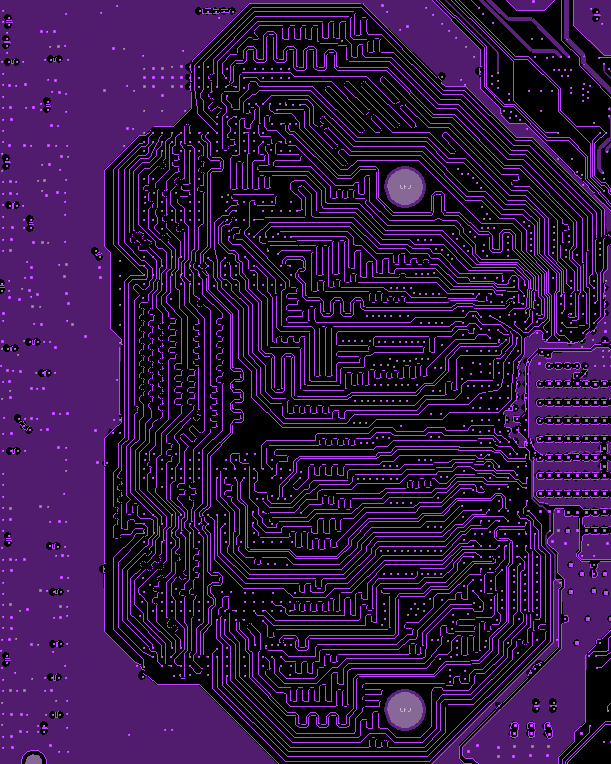

Selected motherboard routing layer — purple
Selected motherboard routing layer — purple

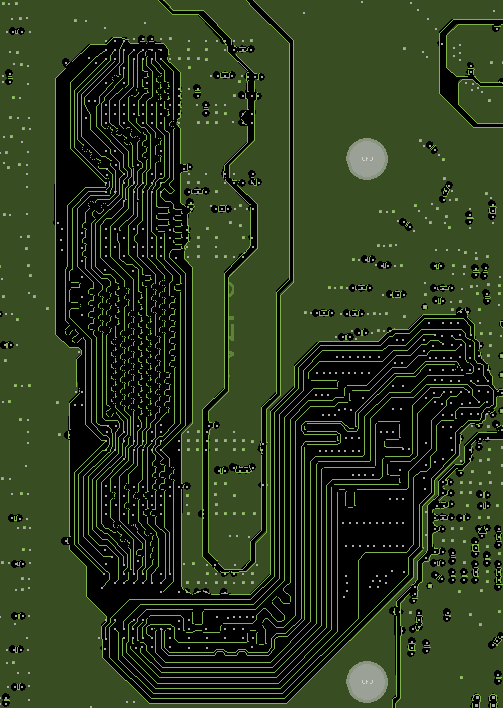

Selected motherboard routing layer — green
Selected motherboard routing layer — green

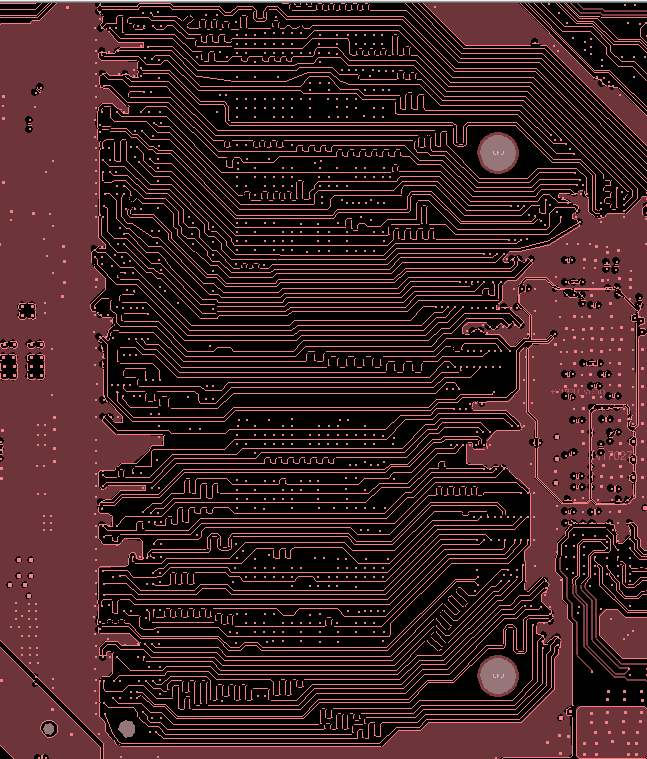

Selected motherboard routing layer — red
Selected motherboard routing layer — red

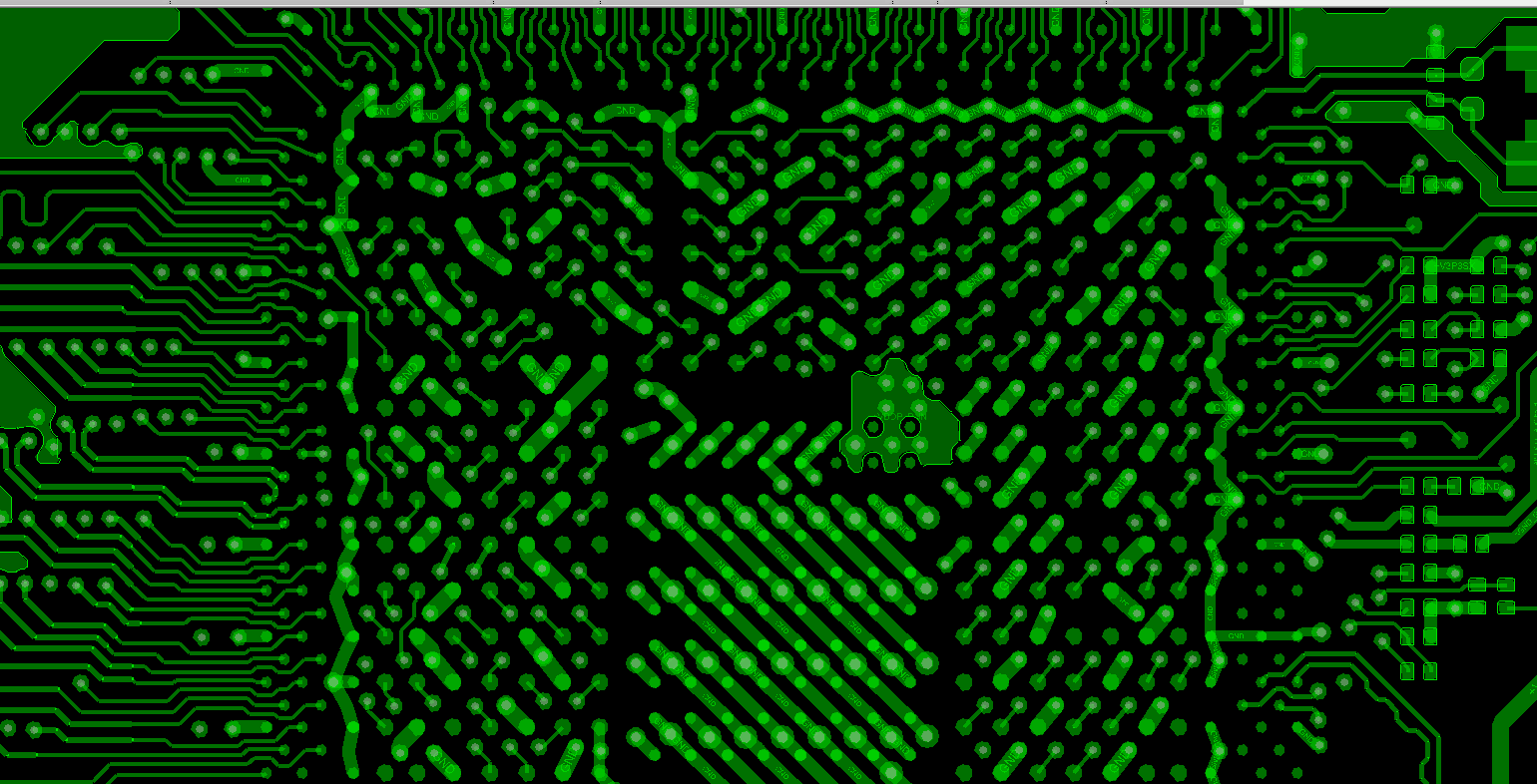

Processor fanout and routing detail
Processor fanout and routing detail

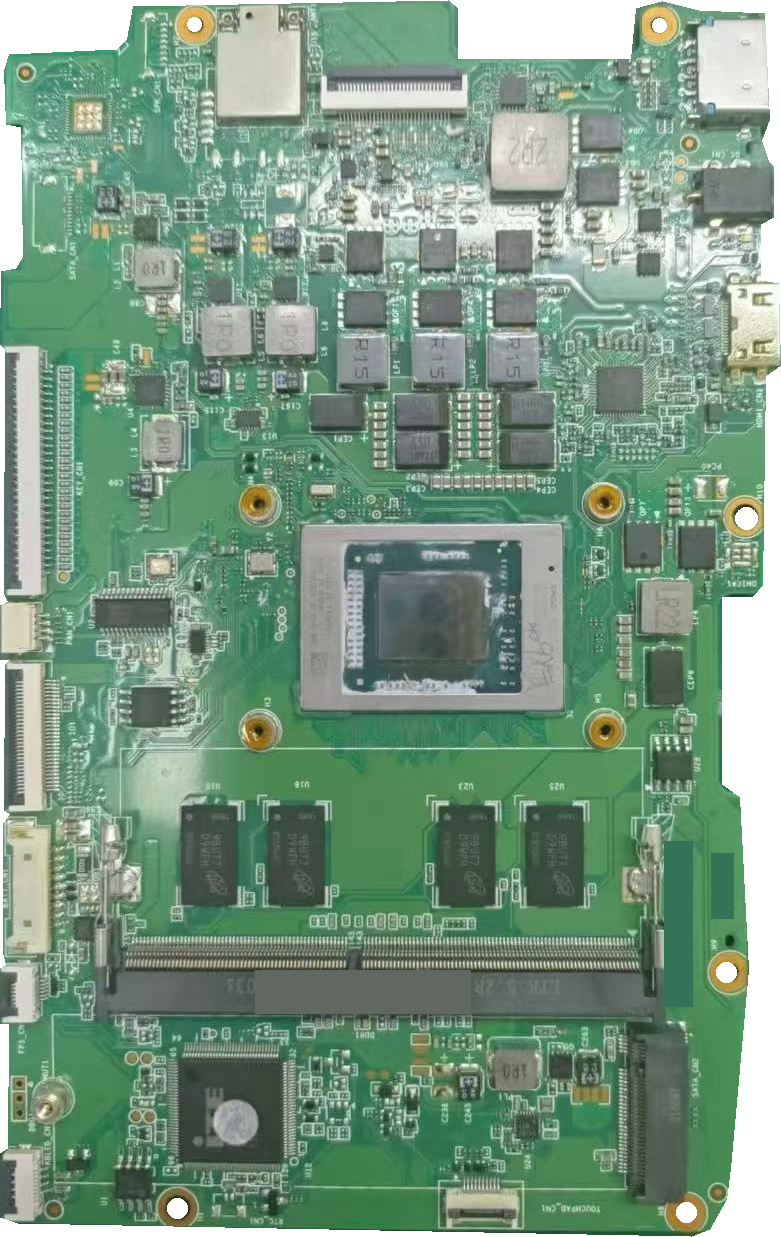

Assembled laptop motherboard; customer identifiers redacted
Assembled laptop motherboard; customer identifiers redacted
Platform
AMD FP6
Layer count
8 layers
Board dimensions
164 × 110 mm
Design tool
Cadence Allegro 17.4
Via technology
Through-hole vias
Project interfaces
LPDDR3 · PCIe Gen 2 · USB 3.0 · eDP · HDMI · SATA

PCB layout scope

PCB placement and routing for a laptop motherboard, covering processor fanout, memory connections and peripheral interfaces. The layer count, dimensions and via technology above refer to the motherboard.

Project imagery

Original CAD views show component placement, selected routing layers and processor fanout detail. The assembly photograph has its background removed and customer identifiers redacted; chip markings and component references are retained.
